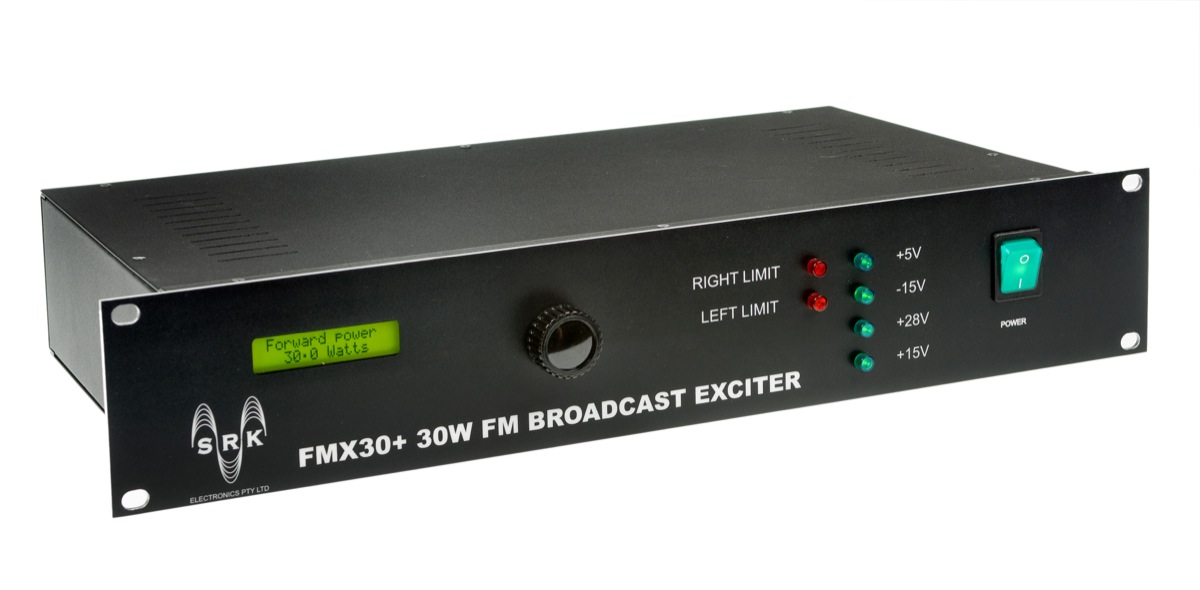

FMX30+ (30W Professional Quality FM Broadcast Exciter) Details

The FMX30+ is a 30W professional quality FM broadcast transmitter/exciter which includes audio processors and a stereo generator.

The FMX30+ is a solid state 30W FM exciter designed for FM broadcast service.

The heart of the FMX30+ is a microprocessor controlled, low phase noise, phase locked loop. This gives excellent audio performance whilst allowing total carrier frequency flexibility.

The signal from the PLL is amplified up to in excess of 30W by a broadband MOSFET stage. One advantage of this technique is a high level of tolerance to reflected power.

For maximum value for money, the FMX30+ comes complete with a stereo generator as standard.

The audio input processors incorporate Bessel anti-alias filters as well as peak limiters. The user may also select the type of preemphasis applied to the audio.

Extensive telemetry functions allow all parameters to be read or programmed remotely, as well as allowing the front panel to be locked for non-secure locations.

Over line voltage, over SWR and over temperature protection are all standard.

Each FMX30+ comes complete with extensive documentation covering installation, use, maintenance and trouble shooting.

The FMX30+ is designed and manufactured in Australia and comes with a 3 year warranty
